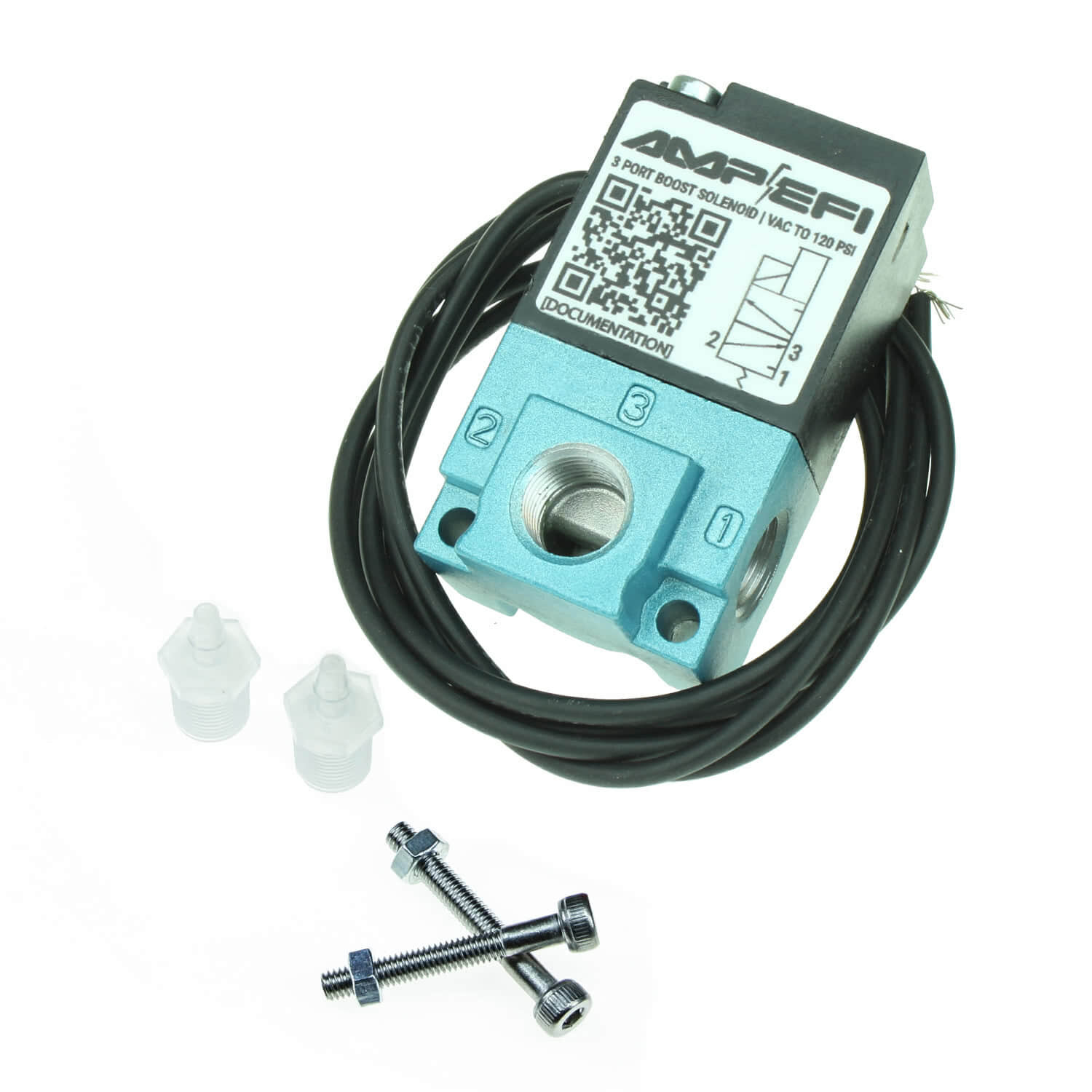

This electronic boost control solenoid can be used with the MS3-Pro/MSPNP as well as any DIY Style MegaSquirt EMS (with the appropriate mods), or with other electronic boost controllers to control boost by adjusting the pressure to a turbo wastegate. The MS3-Pro, MS3X, MSPNP, and DIYPNP can drive this directly. It operates on a frequency of 19.5-40 Hz and is practically a wire-in replacement for the now-discontinued GM EBC Solenoid. It usually needs a slightly lower duty cycle than the GM valve; if you’re replacing a GM valve, we recommend cutting back your duty cycles by 30% and then carefully testing and adjusting as needed. This kit includes 1/8″ barb fittings and mounting hardware.

Maximum pressure is 125 psi, so this can be used even on wild high pressure compound turbo setups.
