Front Mount Intercooler Kit v2 for 1970-1983 Datsun Z Cars

Front Mount Intercooler Kit v2 for 1970-1983 Datsun Z Cars

from $575.00

Now offering our v2 Bolt-In Front Mount Intercooler Kits for the 1970-1983 Datsun Z cars with the L28ET Swap. Featuring TIG welded charge pipes, welded IAT bungs, and less couplers for a much better fit and finish. We also fully support the Protunerz intake manifold, and both throttle body options, as well as a host of turbocharger combinations. While we can’t account for all turbochargers on the market, we have installed a wide variety of combinations in house, and have a good selection of template data.

You can also add the cold air intake option to your order (Not available for factory EFI)

We are also now offering powdercoated charge pipes as an add-on

These kits will feature a fully bolt in kit that runs the hot side across the radiator BEFORE the air enters the intercooler, to keep it from being heated again before entering the engine. The cold side enters the radiator support at the driver’s side of the vehicle, and directly into the throttle body.

These will be offered standard in 3 color options (black, red, and blue) with custom orders being fulfilled just like all of our other products. We will also offer 2 blow off valve flanges as standard, the HKS SSQV, and the Greddy Type S/RS/FV

These kits will feature the following

  • 24”x12”x3” Front Mount Intercooler

  • Powdercoated Steel Intercooler mounting bracket with hardware

  • 4-ply Silicone Couplers (Black, Red, and Blue)

  • 2.5” Aluminum piping with bead rolled ends

  • Stainless Steel T-Bolt Clamps

  • HKS SSQV or Greddy Type S/RS/FV Blow off valve flange [Protunerz intake orders will have a different BOV location]

  • Detailed instructions with color pictures

This kit does not fit with the stock fan clutch, and the use of electric cooling fans is MANDATORY.

We offer a dual SPAL fan kit with a Plug and Play harness specifically engineered around our front mount intercooler kits, found below

>>> Dual SPAL Fan Kit <<<

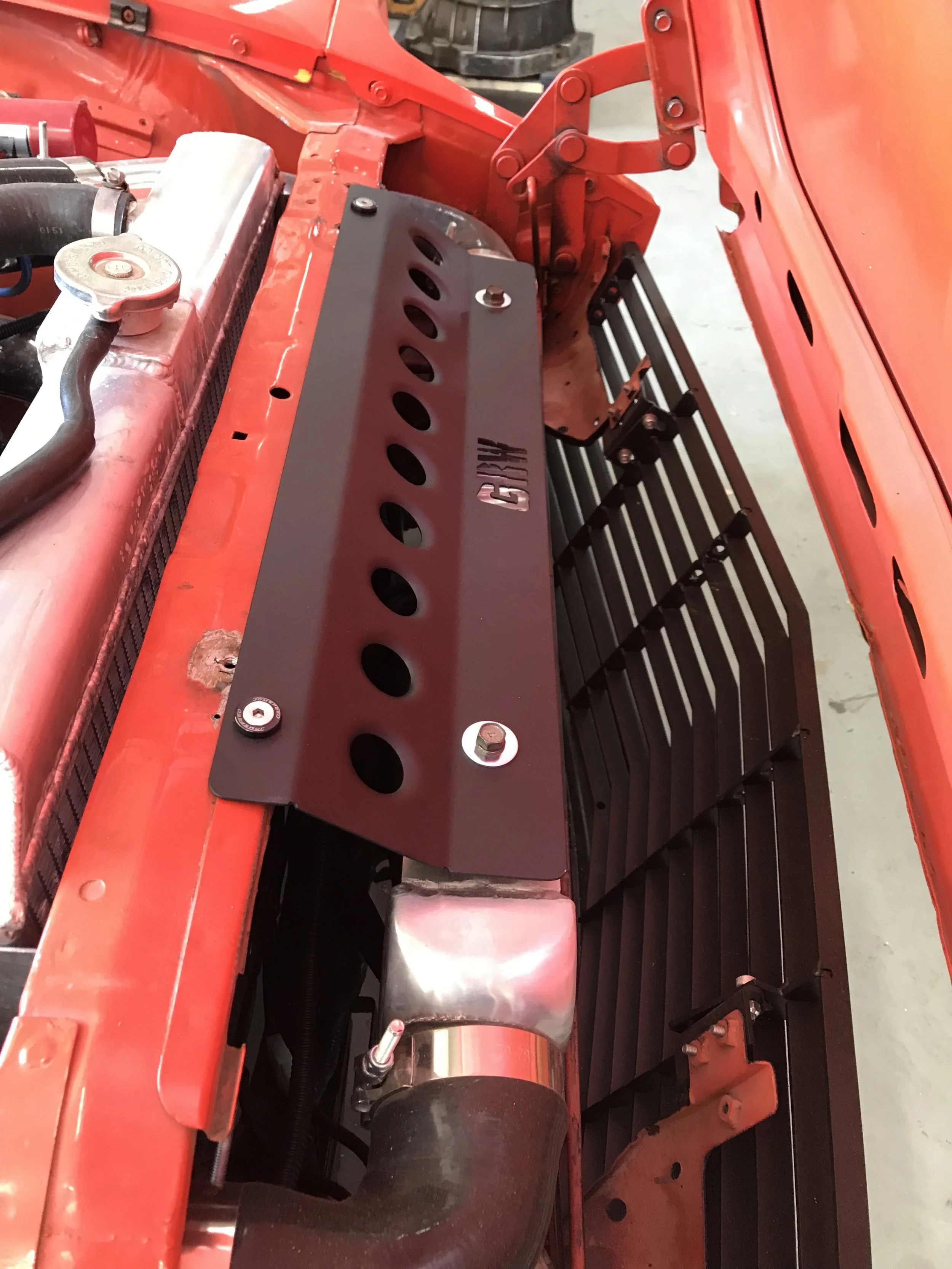

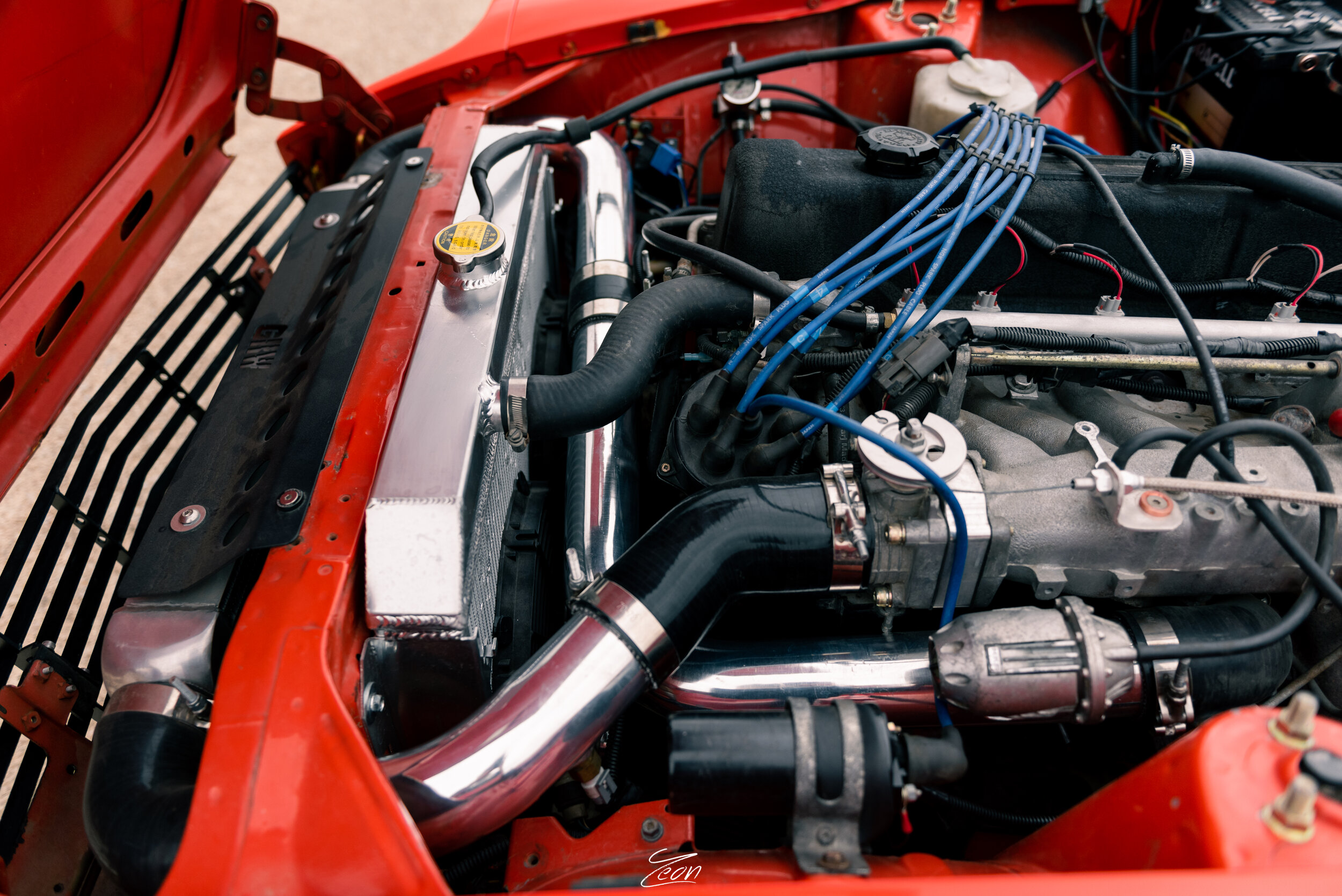

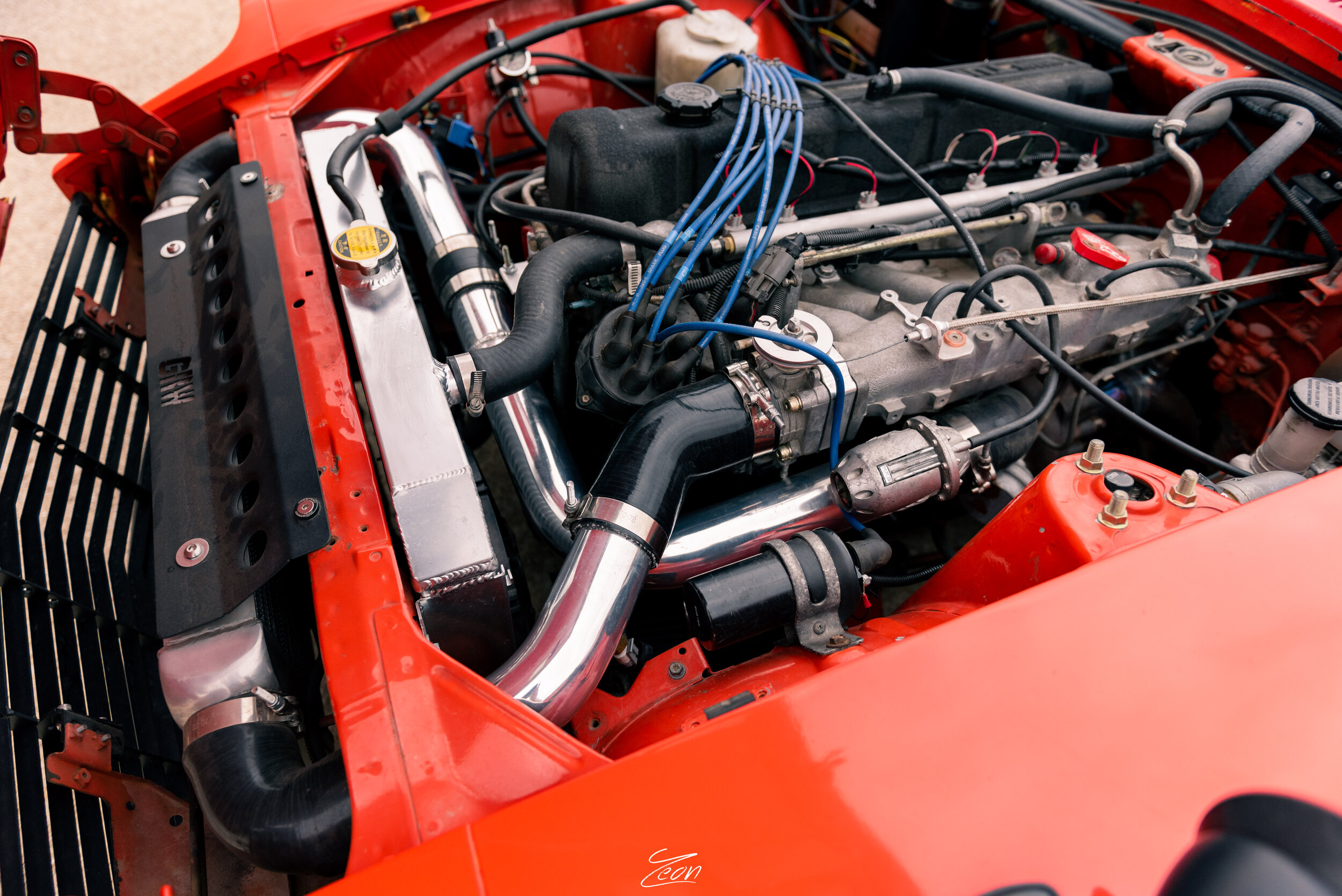

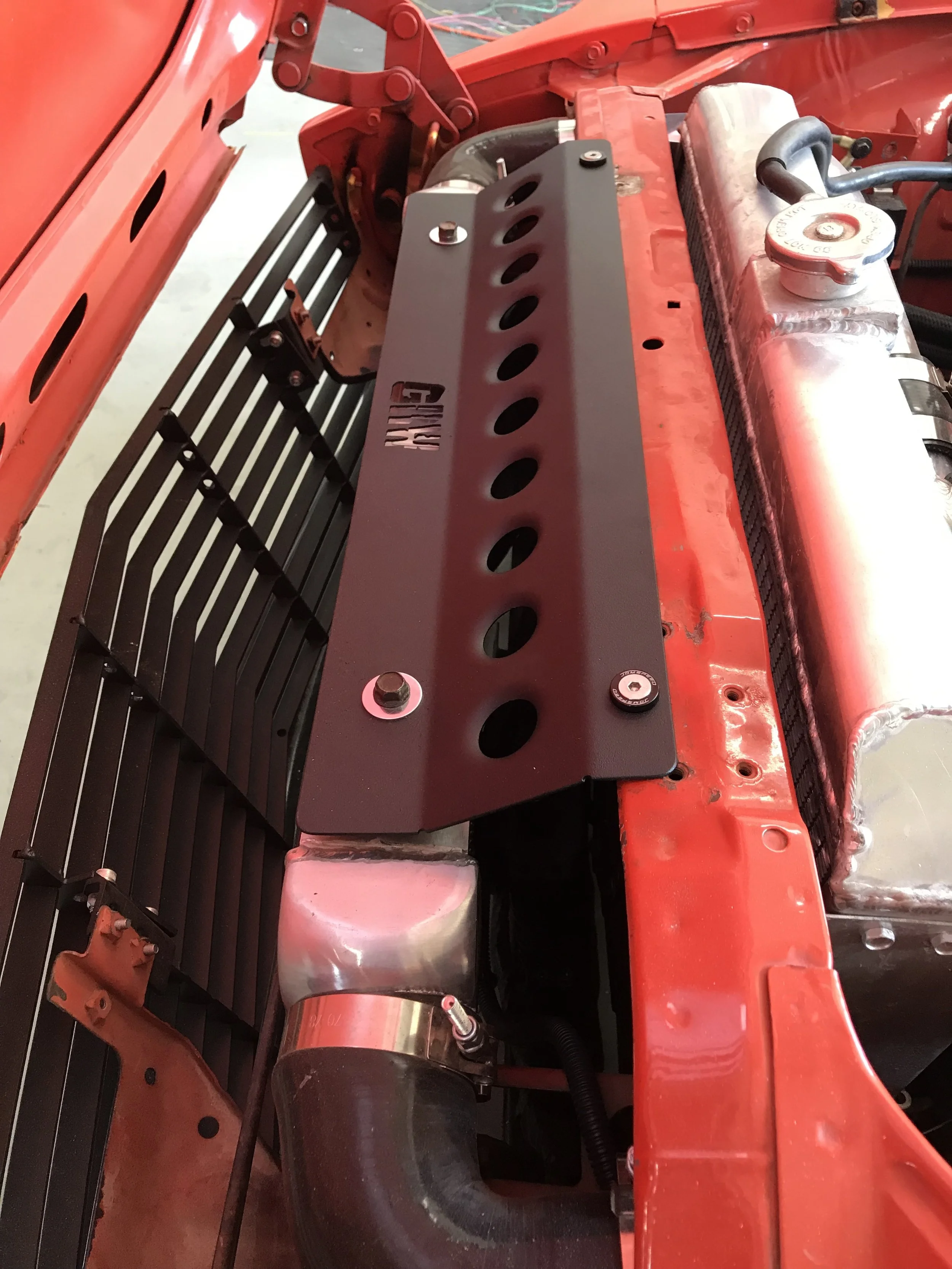

The late model S30 kit is pictured, early S30 kits are similar. The S130 kit will feature a deeper intercooler mounting, and will also require the use of electric fans. Will also require some minor trimming on the passenger side radiator support

We also offer both the Greddy and HKS blow off valves for purchase found at the links below

https://www.godzillaraceworks.com/turbochargers-and-accessories/greddy-type-fv-blow-off-valve

https://www.godzillaraceworks.com/turbochargers-and-accessories/hks-ssqv-4-blow-off-valve

w/ Cold Air Intake?:
Year Model:
With Powercoated Charge Pipes?:
Quantity:
Add To Cart
