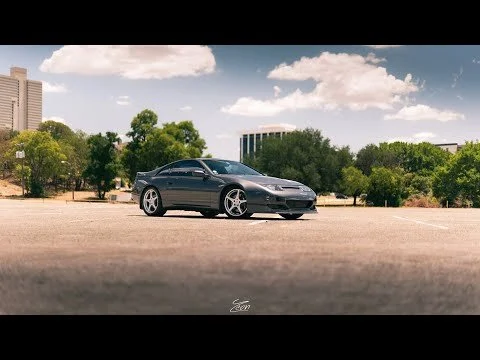

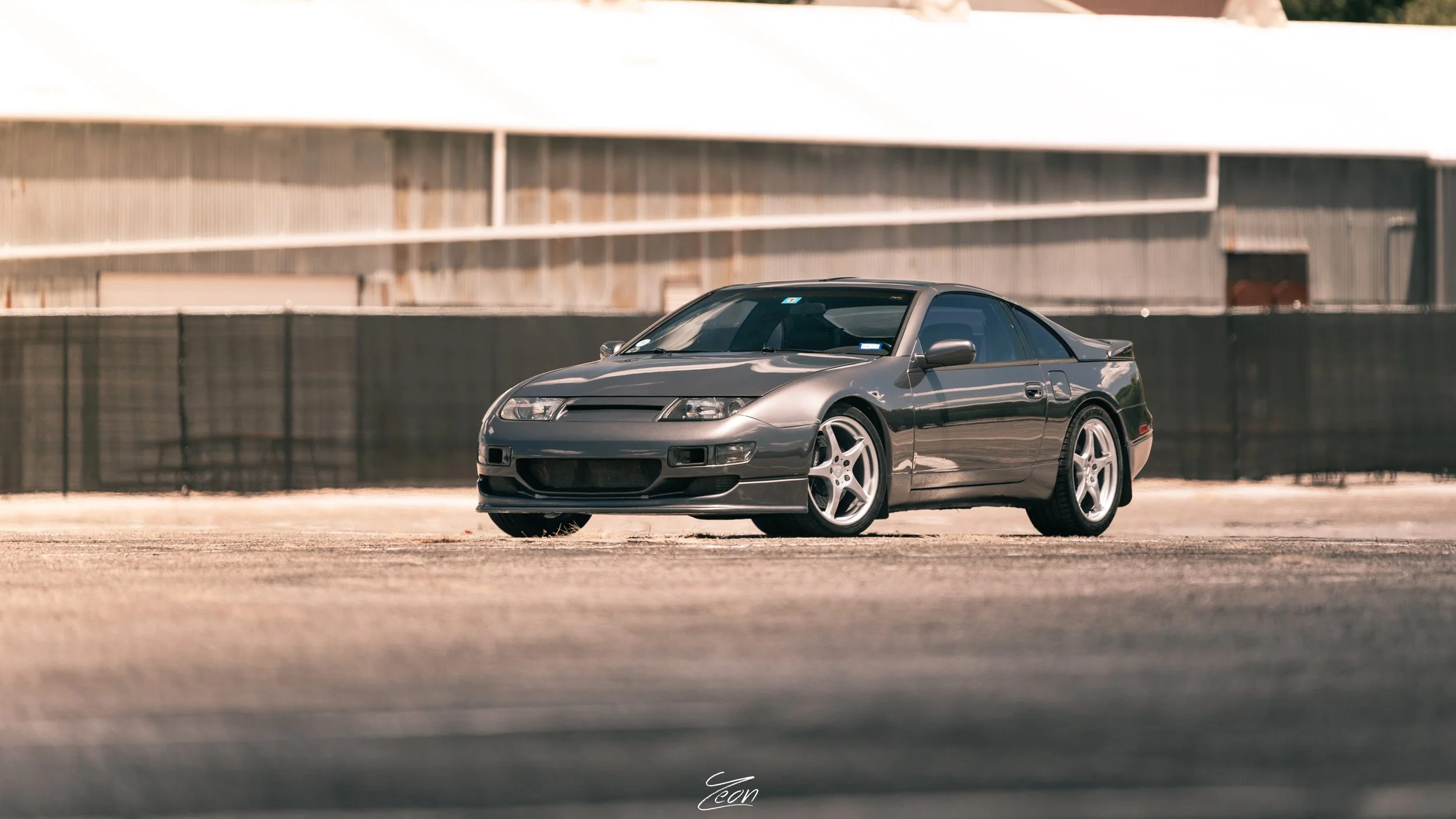

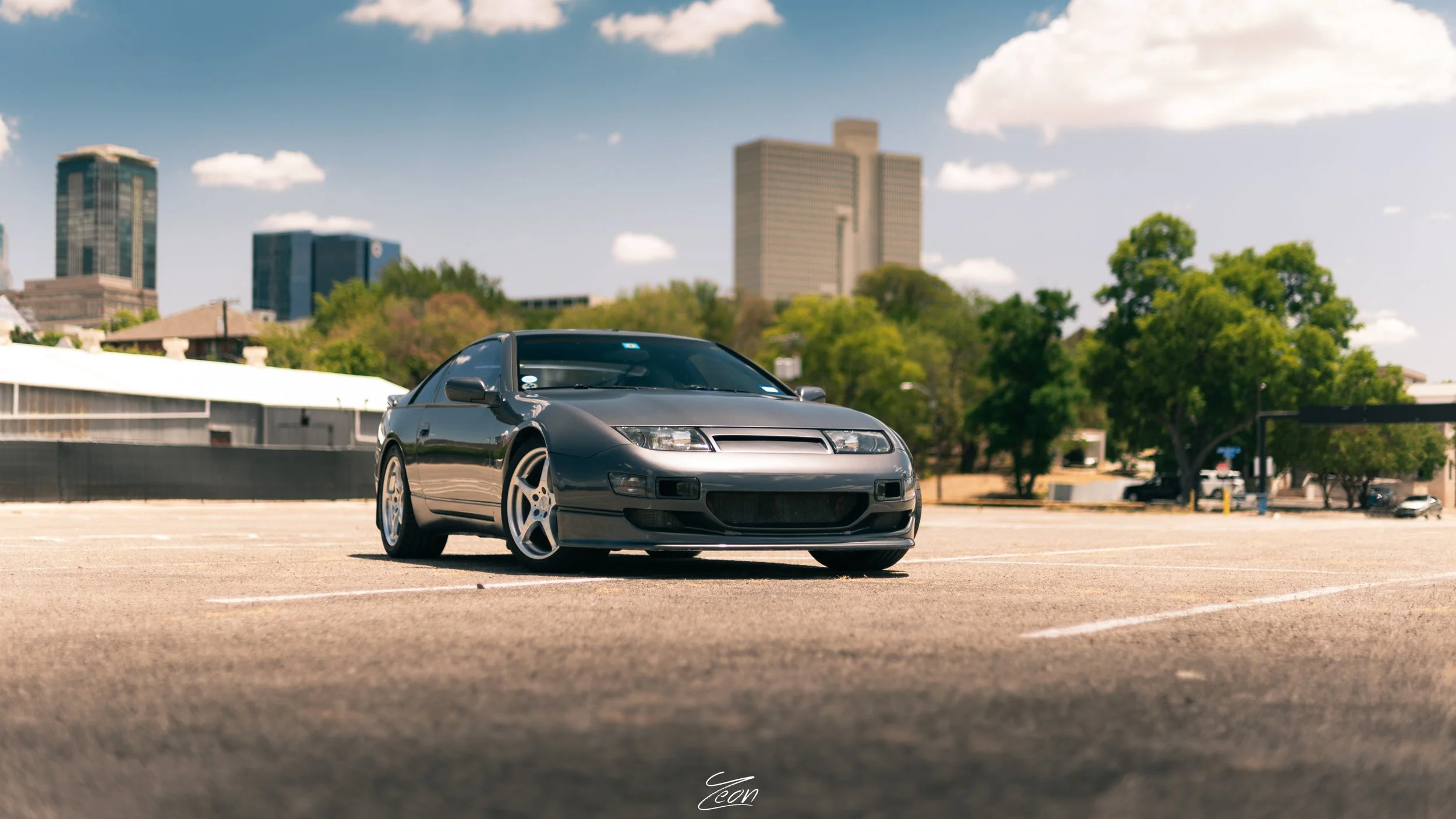

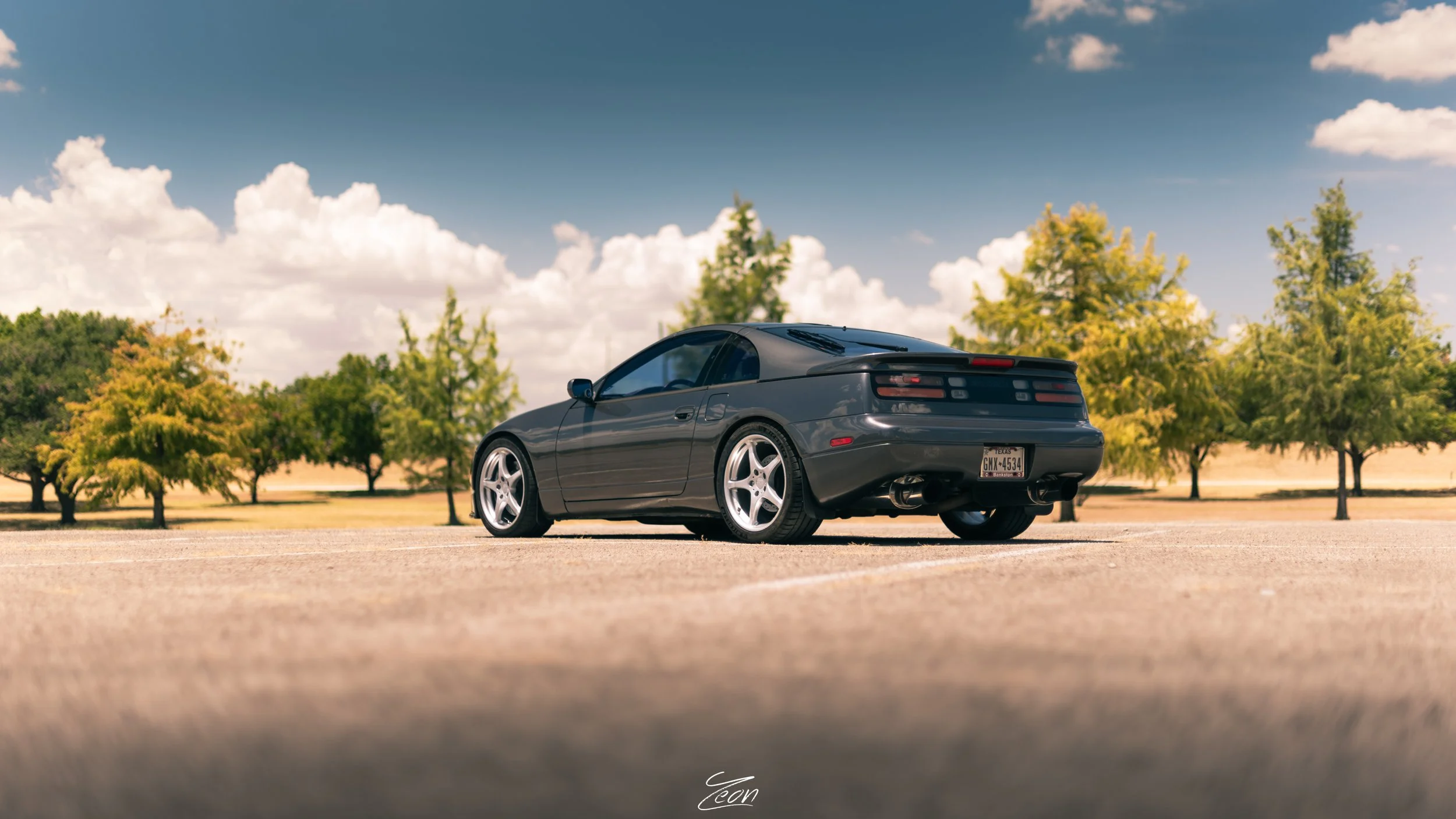

Clive's 91' 300zx Twin Turbo JDM Homage

Clive has had this full bolt-on Z32 twin turbo for quite some time, long enough for this car to have a treasure trove of classic JDM goodies, with a few modern touches. This car was fully built almost 20 years ago, and then enjoyed over the last 2 decades. It eventually went into storage for a little while, as it developed some severe oil leaks, among other life changes.

Clive finally decided to pull it out of storage in late 2021 and have a full evaluation done by us, and get a complete idea of what it would take to restore the car back to it’s former glory. While we did find a whole host of oil leaks, typically we always recommend removing the engine for further inspection, rather than try to service all of the leaks in-frame, as it is much more cost effective working on an engine stand.

Upon further inspection, we found the beginnings of a major oil consumption issue in the typical form of blown ring lands on pistons #2, #4, and #6, a common issue on the VG30DETT platform once you start making serious horsepower increases. Fortunately we avoided a major investment into repairing external oil leaks and were able to avoid a major mechanical catastrophe from happening in the near future. With that being said, we gave this car the full GRW engine build treatment with a set of Wiseco Forged Pistons, Eagle Forged Connecting Rods, ported coolant jackets in the block, as well as rebuilding the cylinder heads, micro-polishing and re-balancing the rotating assembly, and while we had it apart, welding the counterweight bolts to the removable counter-weight so it would never become an issue.

Since the engine had already been extensively modified before we received it, this was a simple case of future-proofing the engine and making sure it was going to remain reliable for years to come.

ENGINE SPECS

  • VG30DETT 3.0L Twin Turbo V6 Engine

  • 5 Speed Standard RS5R30A Transmission

  • Wiseco 88mm Forged Piston Set

  • Eagle Forged Connecting Rod Set

  • Cometic MLS Head Gasket Set

  • ARP Head Stud Kit

  • ACL Race Main Bearing Set

  • ACL Race Connecting Rod Bearing Set

  • Blitz SBC I-D III Electronic Boost Controller

  • JWT Chipped ECU

  • JWT Pop Charger

  • 300 Degree Fuel Rails w/ Nismo 740cc Injectors

  • JWT 550BB Turbochargers

  • Stillen Side Mount Intercoolers

  • Mike Smith High Flow Turbo Manifolds

  • Specialty Z 3” Expansion Downpipes

  • Specialty Z Test Pipes

  • Greddy Cat-Back Exhaust

  • RPS Max Street Clutch w/ South Bend Clutch Quiet Disc

  • RPS Cyn-R-G Aluminum Flywheel (12lbs)

  • UR Underdrive Crankshaft Pulley

  • BDE Intake VCT Cam Gears

  • DeatschWerks DW300 Fuel Pump w/ Relay mod

  • Koyo Aluminum Radiator

  • Mishimoto Silicone Radiator Hoses

  • HPS Silicone Charge Hoses

SUSPENSION SPECS

  • SPL Adjustable Front Upper Control Arms

  • SPC Adjustable Rear Upper Control Arms

  • SPC Adjustable Rear Toe Arms

  • Tein Adjustable Front Tension Rods

  • Tokico Illumina 5-Way Adjustable Shocks

  • Eibach Pro-Kit Lowering Springs

  • Whiteline Rear Lower Shock Bushings

  • Energy Suspension Rear Differential Bushings

EXTERIOR AND WHEEL SPECS

  • KingZ Type 2 Nose Panel

  • Escort Front Fascia

  • J-Spec Smoked Turn Signal Lenses

  • DDM HID Low Beams

  • Toshiba HID High Beams

  • Powertrix CF Fog Lamp Ducts

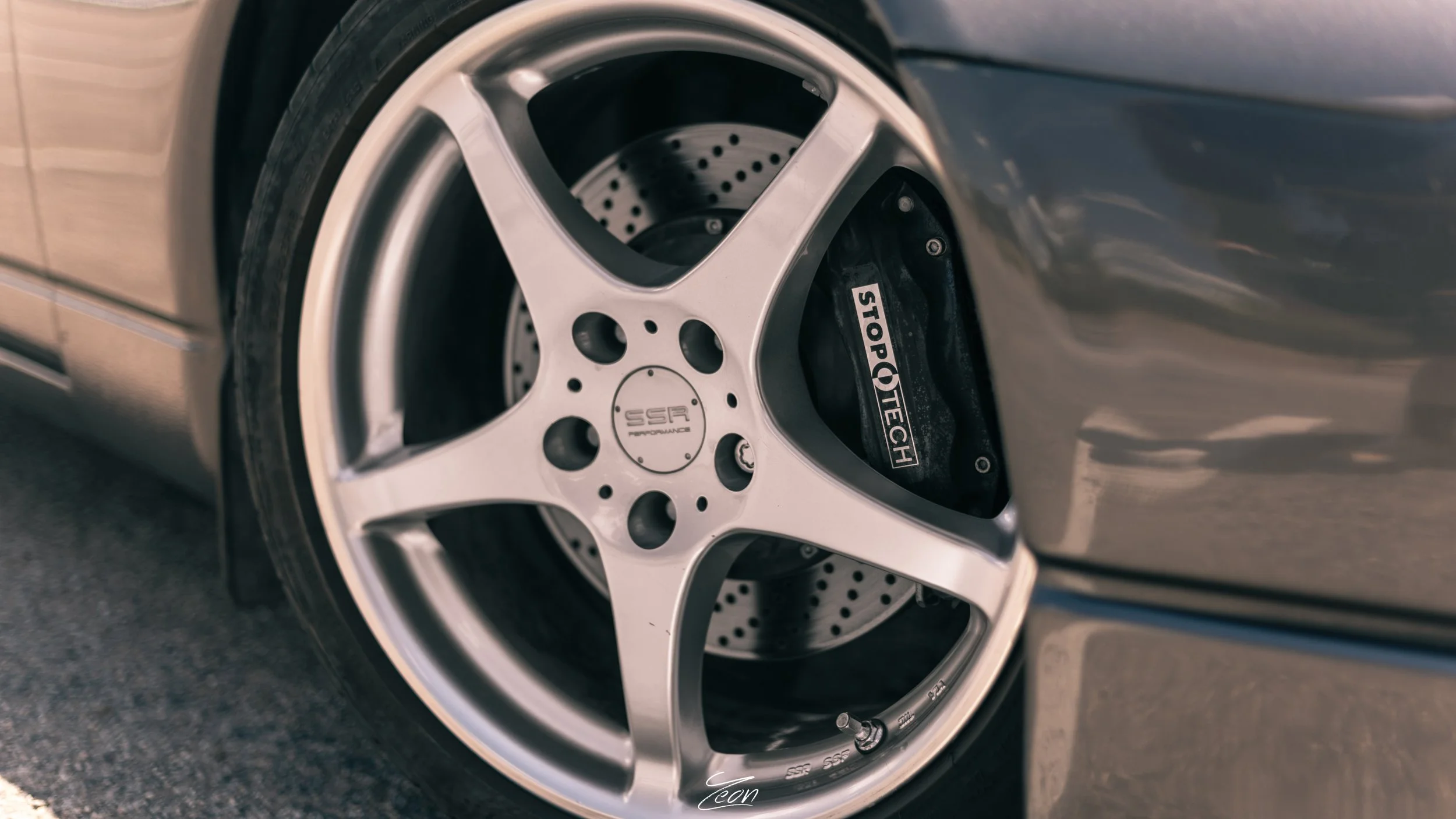

  • SSR Integral Wheels 18x8 F / 18x9 R

  • Michelin Pilot Super Sport 235/40/ZR18

  • Michelin Pilot Sport 4S 275/35/ZR18

  • StopTech Front AeroRotors (332mmx32mm Drilled)

  • StopTech Front ST-40 4 Piston Big Brake Kit

  • StopTech Rear Drilled Rotors

  • SopTech SS Brake Hoses

  • Hawk HPS Brake Pads (Front & Rear)
